Type2 AC Charging plug (Car)-Type2 AC Charging Plug-Ningbo Chuangcai Electric Technology Co., Ltd.

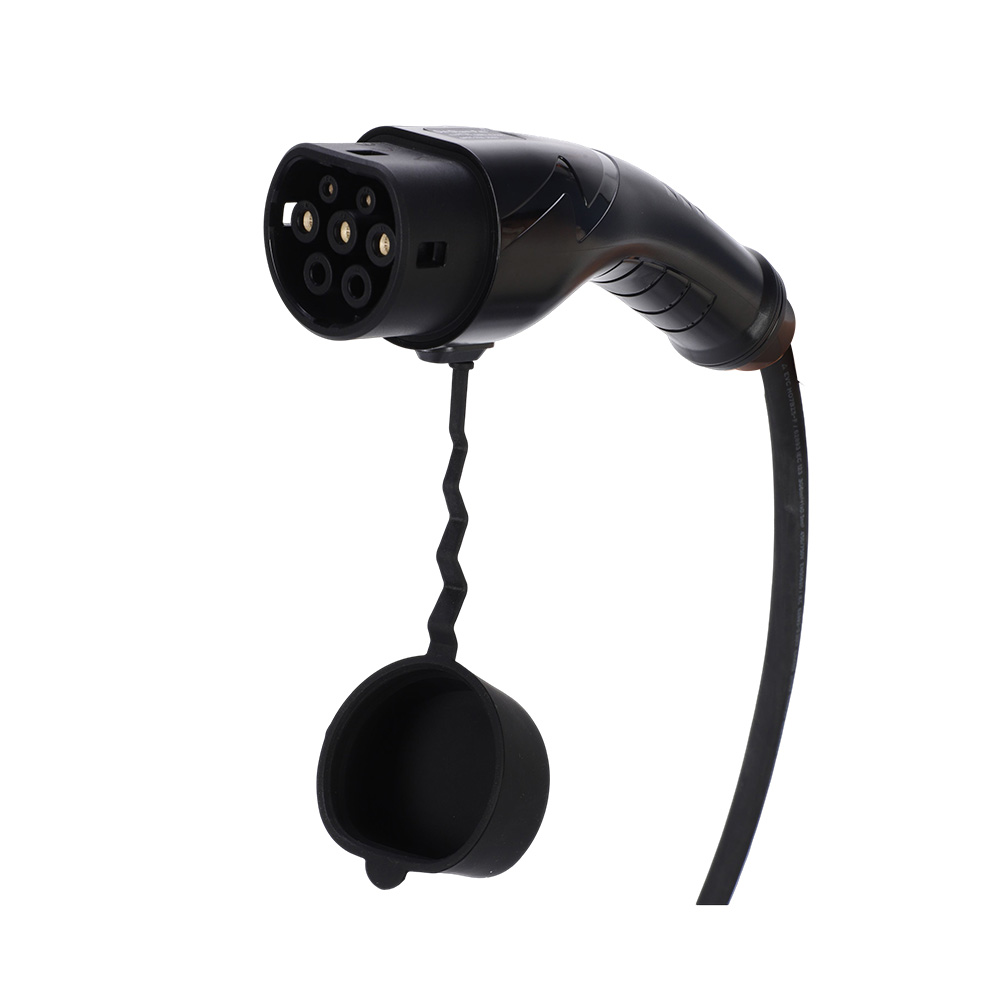

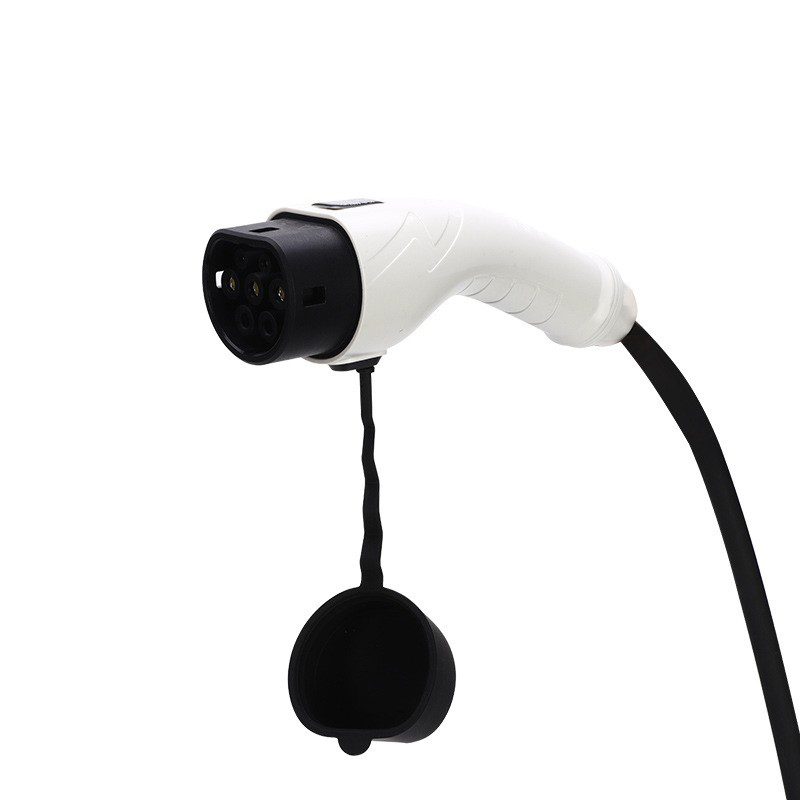

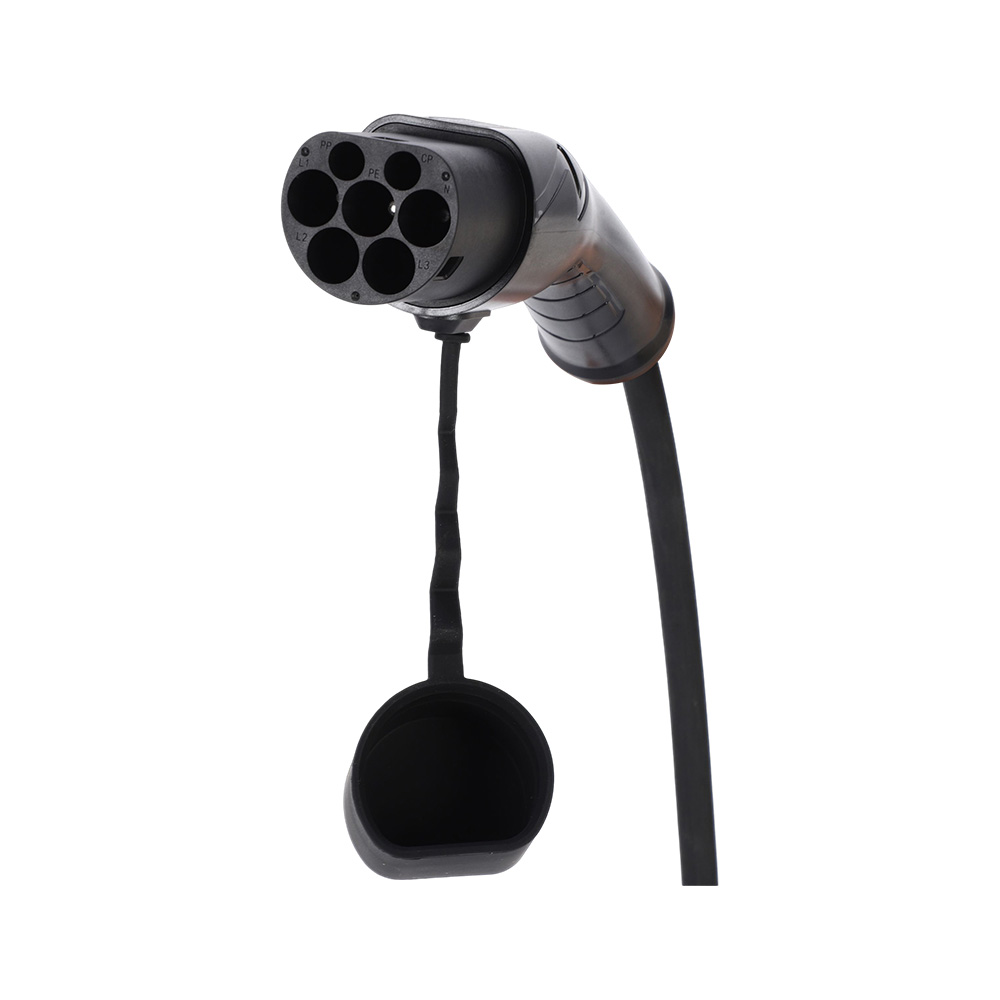

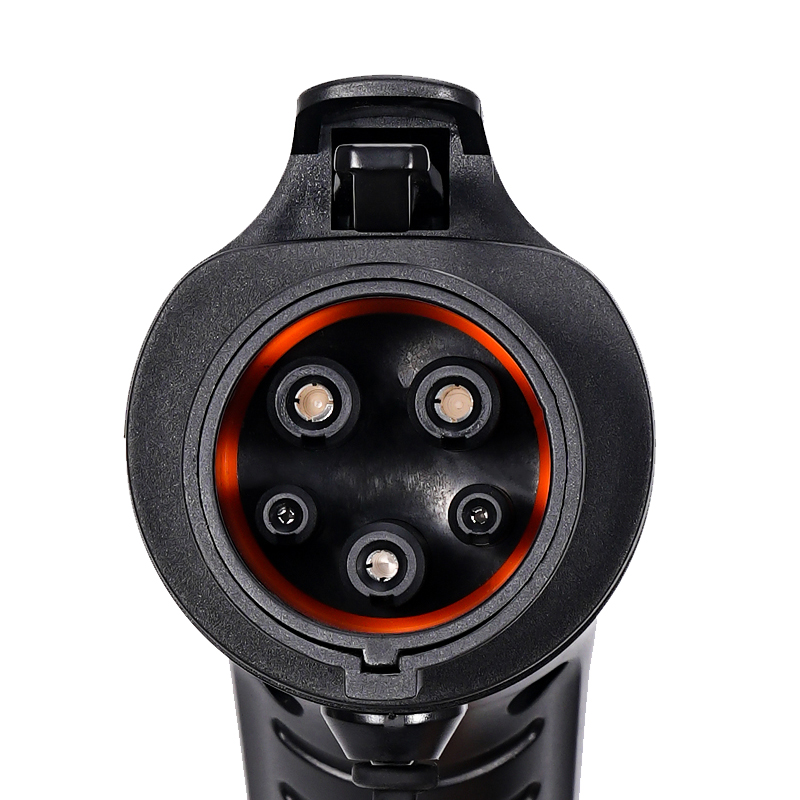

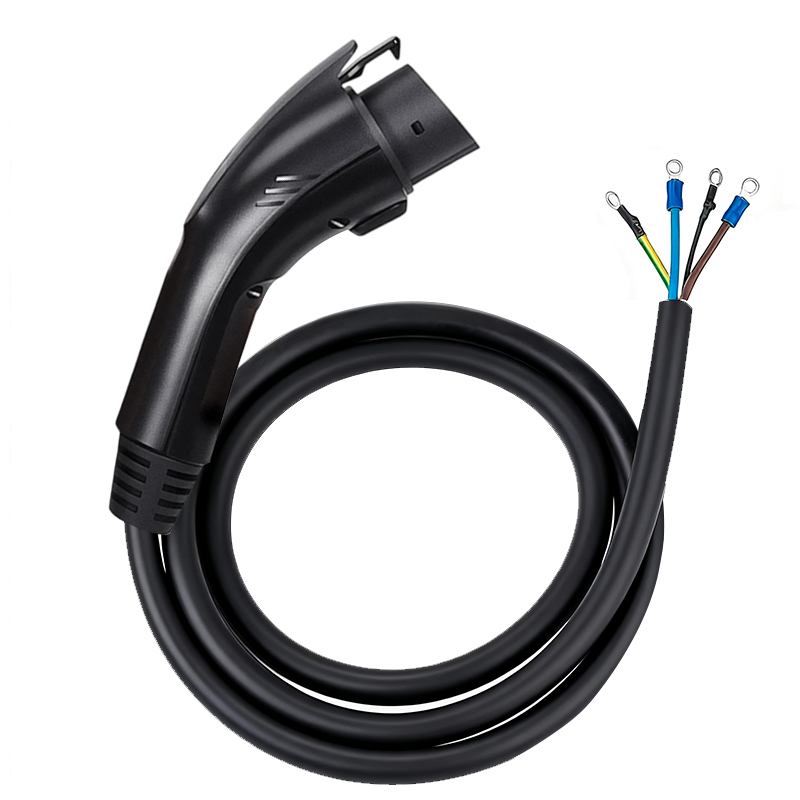

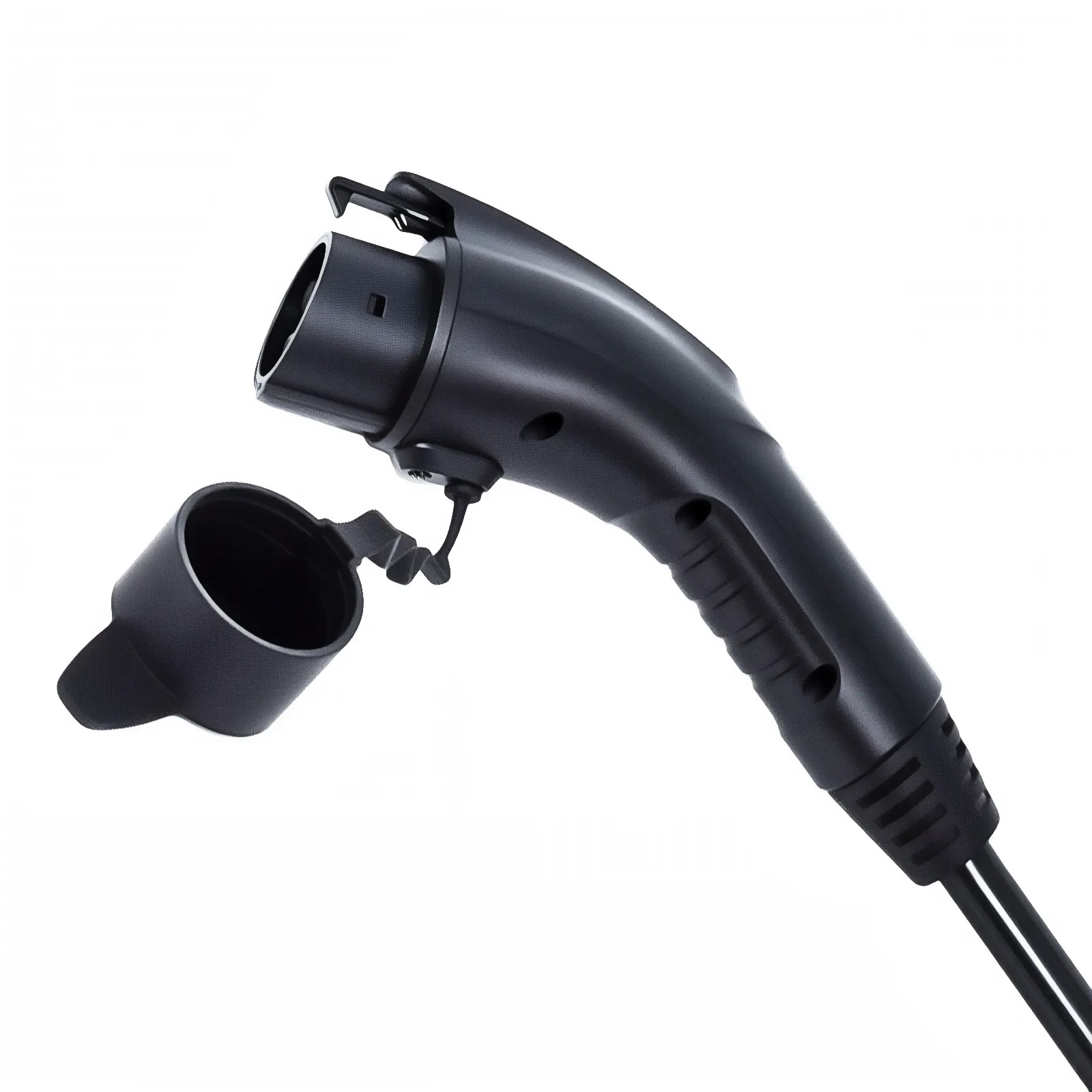

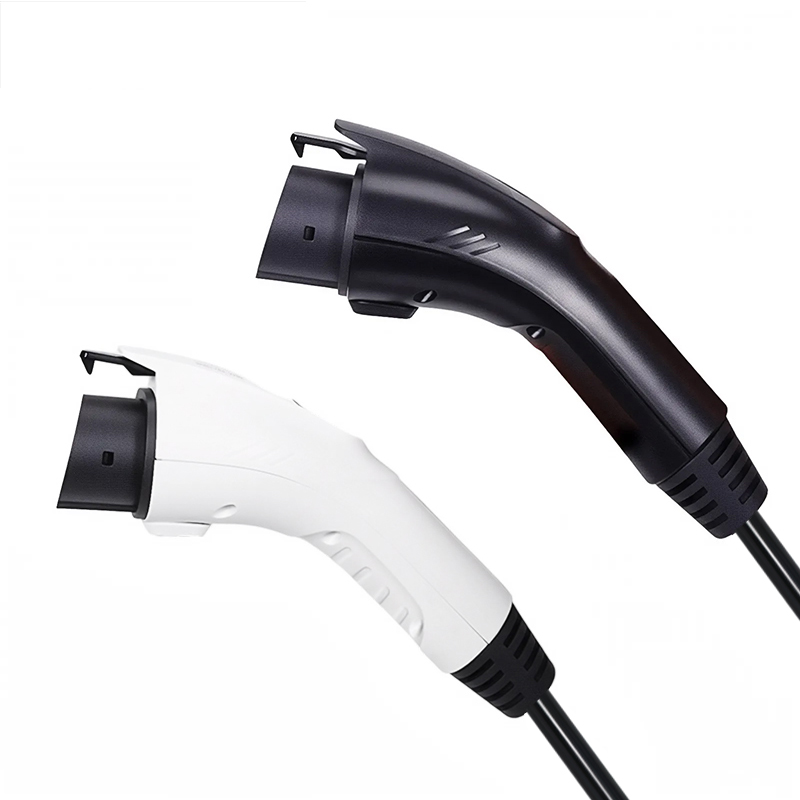

Type2 AC Charging plug (Car)

16A 3-Euro javelin white (11kw 3-phase 5 meter wire)

32A single European javelin white (7.5kw single-phase 5 meter line)

32A 3-Euro javelin white (22kw 3-phase 5 meter wire)

Other attributes

Place of Origin
Zhejiang, China
Purpose
for retrofit/upgrade
Model Number
21
Product name
Electric Vehicle Charging Station
Meets standards
IEC 62196-2
Mechanical life
No-load plugging > 10000 times
Operating ambient temperature
-30°C~+ 55°C
Housing material
Thermoplastic with flammability rating UL94 V-0
Ingress protection
IP56 (Operating)
Operating current
Single-phase electricity  16A  220V-250V  3.5KW
Three-phase electricity  16A  380-480V  7.2KW
Single-phase electricity  32A  220V-250V  11KW
Three-phase electricity  32A  380-480V  22KW
Operation voltage
220V-250V or 380-480V
Insulation resistance
> 1000MΩ (DC500V)

Packaging and delivery

Packaging Details
CARTON

Supply Ability

Supply Ability
20000 Piece/Pieces per Month
Service Online:
Meets standards
IEC 62196-2
Mechanical life
No-load plugging > 10,000 times
Operating ambient temperature
-30°C~+ 55°C
Housing material
Thermoplastic with flammability rating UL94 V-0
Insulation resistance
> 1000MΩ (DC500V)
Terminal temperature rise
< 50K
Pressure-resistant
2000V
Current
Single-phase electricity  16A  220V-250V  3.5KW
Three-phase electricity  16A  380-480V  11KW
Single-phase electricity  32A  220V-250V  7.5KW
Three-phase electricity  32A  380-480V  22KW
Voltage
220V-250V or 380-480V
Power
3.5KW or 7.5KW or 11KW or 22KW
Waterproof rating
IP56
Flammability rating
UL94V-0
Gun head
Flame retardant  PA66  Nylon material
Handle
Flame retardant PC
