Other attributes
| Place of Origin |
Zhejiang, China |
| Purpose |
for retrofit/upgrade |
| Model Number |
18 |
| Product name |

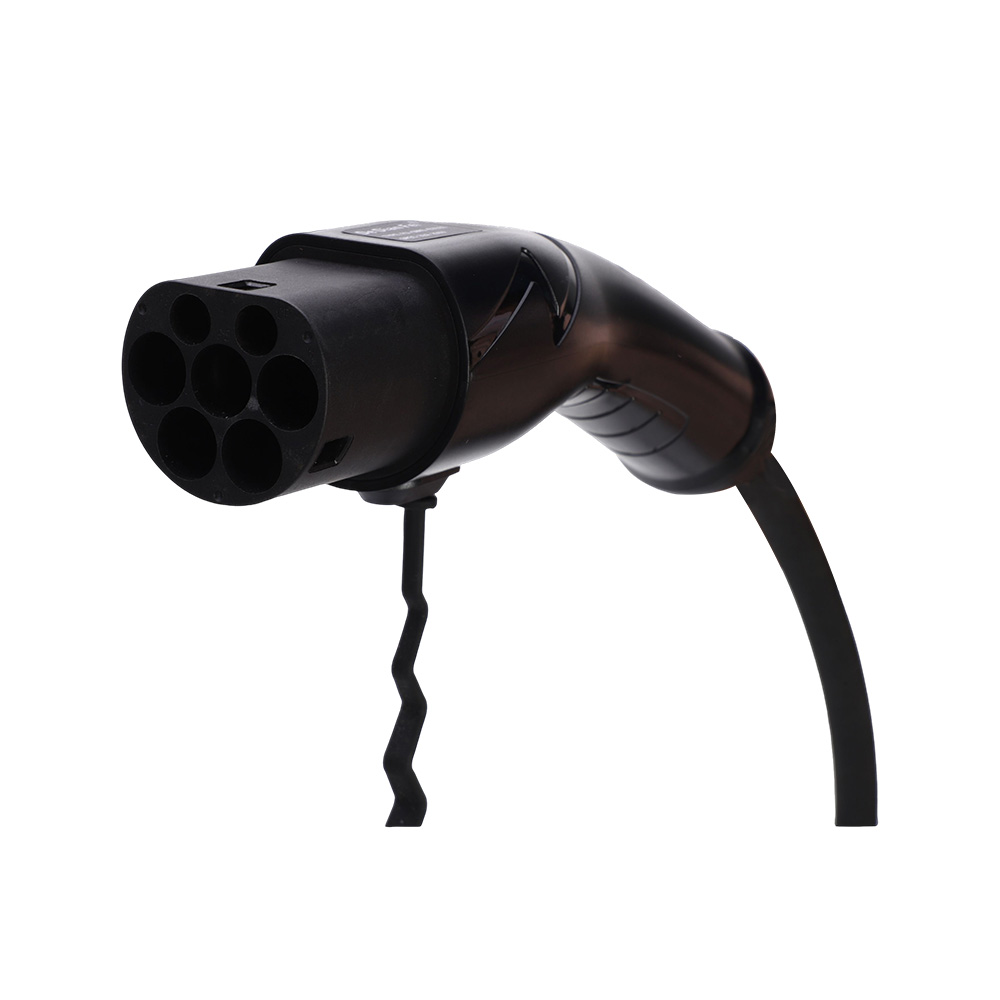

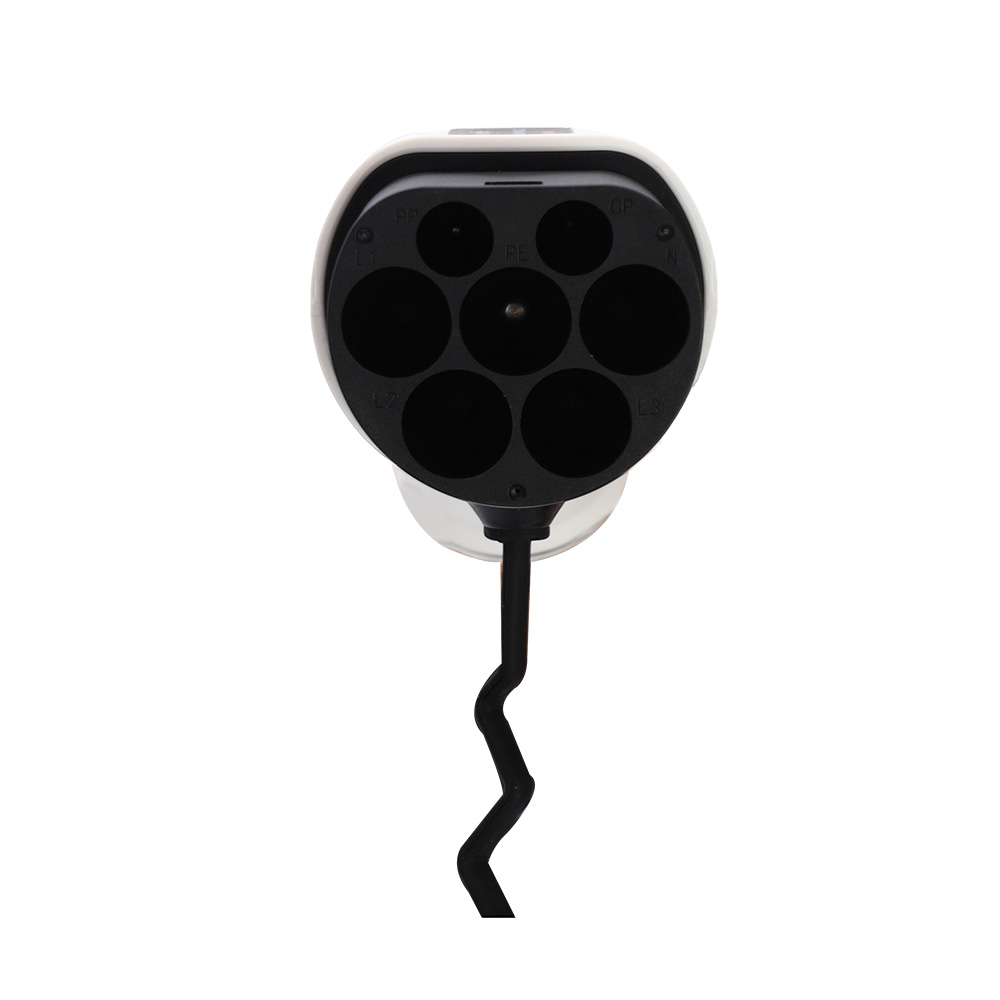

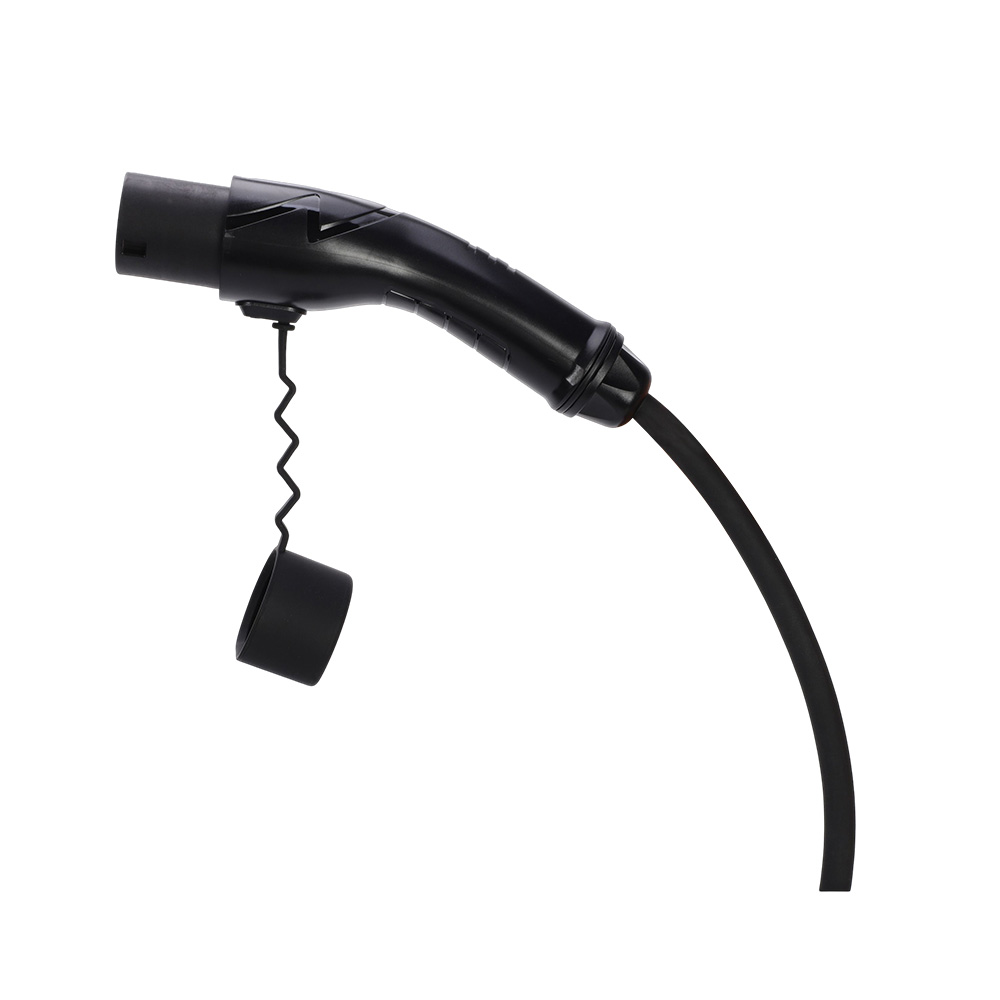

Electric Vehicle Charging Station |
| Meets standards | IEC 62196-2 |
| Mechanical life |
No-load plugging > 10000 times |
| Operating ambient temperature |
-30°C~+ 55°C |
| Housing material |
Thermoplastic with flammability rating UL94 V-0 |
| Ingress protection |
IP56 (Operating) |
| Operating current |
Single-phase electricity 16A 220V-250V 3.5KW Three-phase electricity 16A 380-480V 11KW Single-phase electricity 32A 220V-250V 7.5KW Three-phase electricity 32A 380-480V 22KW |
| Operation voltage |
220V-250V or 380-480V |
| Insulation resistance |
> 1000MΩ (DC500V) |
Packaging and delivery
| Packaging Details |
CARTON |
Supply Ability
| Supply Ability |
20000 Piece/Pieces per Month |
| Meets standards |
IEC 62196-2 |
| Mechanical life |
No-load plugging > 10,000 times |
| Operating ambient temperature |
-30°C~+ 55°C |
| Housing material |
Thermoplastic with flammability rating UL94 V-0 |
| Insulation resistance |
> 1000MΩ (DC500V) |
| Terminal temperature rise |
< 50K |
| Pressure-resistant |
2000V |
| Current |
Single-phase electricity 16A 220V-250V 3.5KW Three-phase electricity 16A 380-480V 11KW Single-phase electricity 32A 220V-250V 7.5W Three-phase electricity 32A 380-480V 22KW |
| Voltage |
220V-250V or 380-480V |
| Power |
3.5KW or 7.5KW or 11KW or 22KW |
| Waterproof rating |
IP56 |
| Flammability rating |
UL94V-0 |
| Gun head | Flame retardant PA66 Nylon material |
| Handle | Flame retardant PC |
