Wiring
National standard wiring: 32A 3*6+0.75
Cable material: TPE 5 meters long

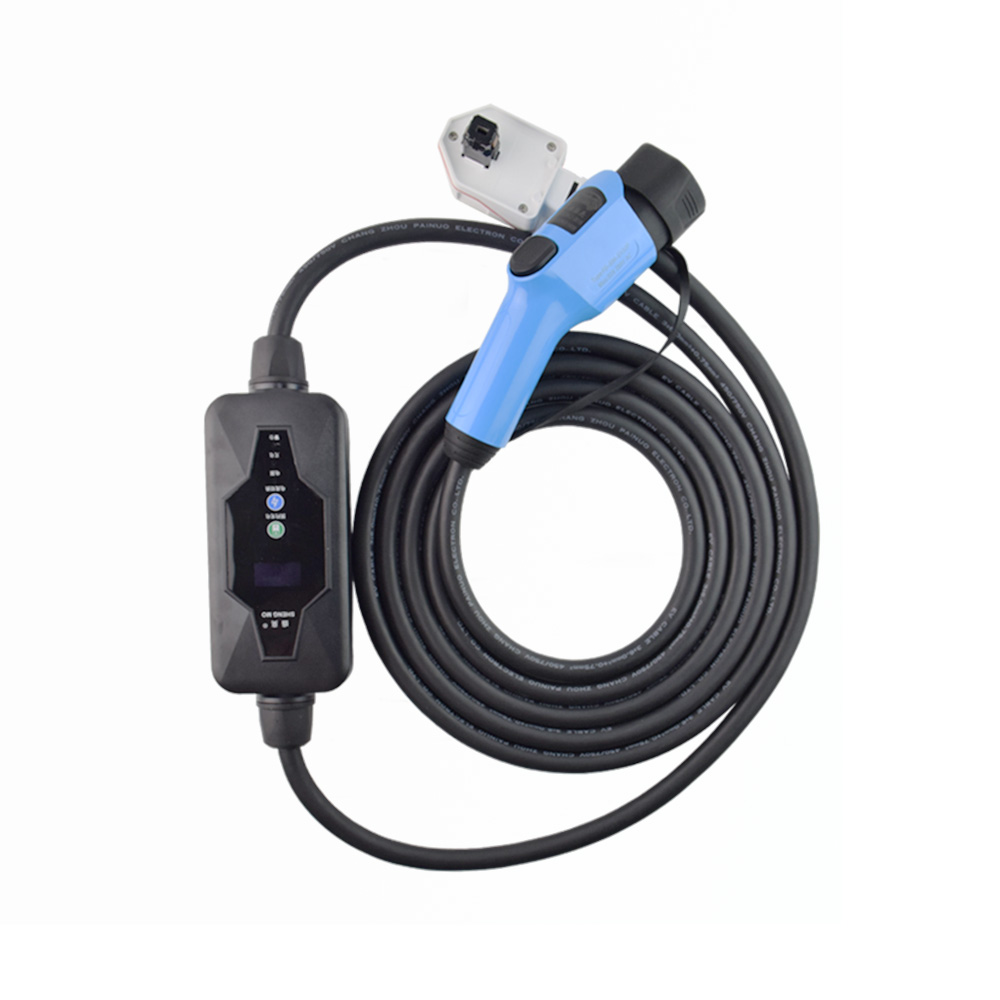

Charging gun
Gun shell: PC material
Gun head: Nylon material PA66
Flame retardant: UL94-0 level
Voltage: 220V-250 32A 7KW
Compliant with standards: GB/T 20234.-2015
Charging box size: length: 26CM width: 9CM height: 6CM
Charging gun function: with Tesla one-button opening function, with running water light
Charger function: with display screen, current switching (13A 16A 25A 32A), timed charging (1-9 hours), there are three lights, namely power, warning, and charging.
| Brand | Shengmo |
| Model | FD-SM-EV-32P |
| Charging port | New national standard 7 holes |
| Color | White/Blue |
| Electronic lock | Support vehicle electronic lock |
| Relative humidity | 95% at 40°C |
| Cable length | 5m/10m |
| Input voltage | 80V-250V wide voltage range |
| Maximum power | 7KW |
| Output current | 13A/16AV25A/32A |
| Gun head protection | IP66 (plugged in) |
| Ambient temperature | -30°C~+50°C |
