Electric Motorcycle Charger Connector-Electric Motorcycle Charger-Ningbo Chuangcai Electric Technology Co., Ltd.

PRODUCT

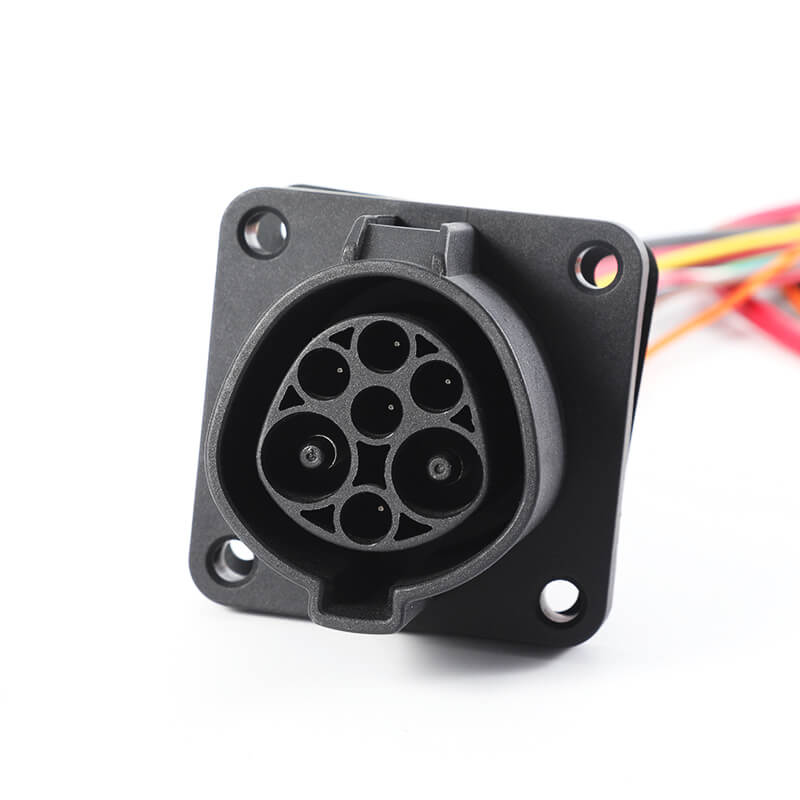

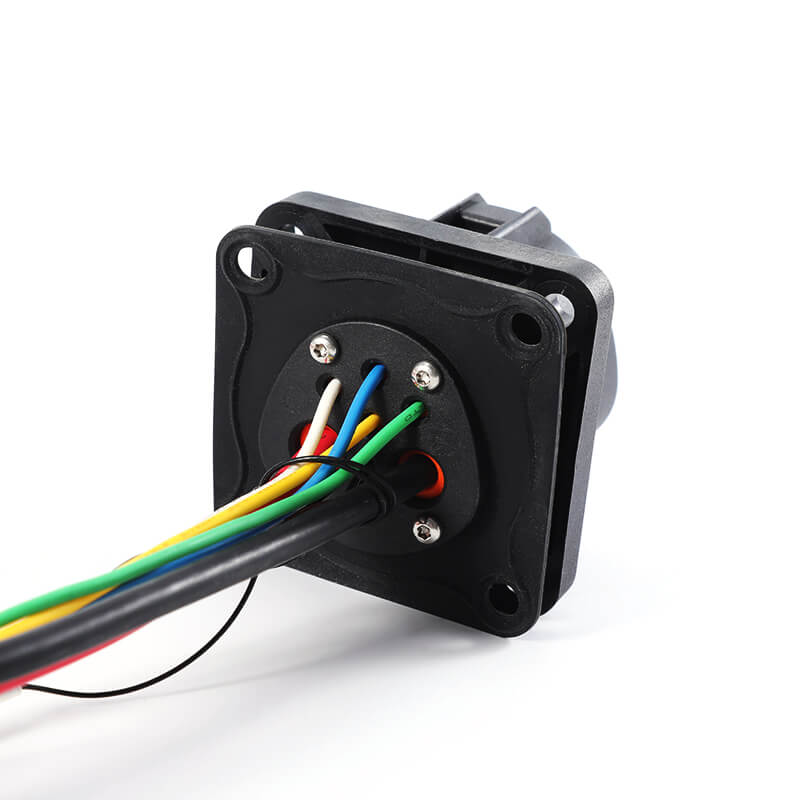

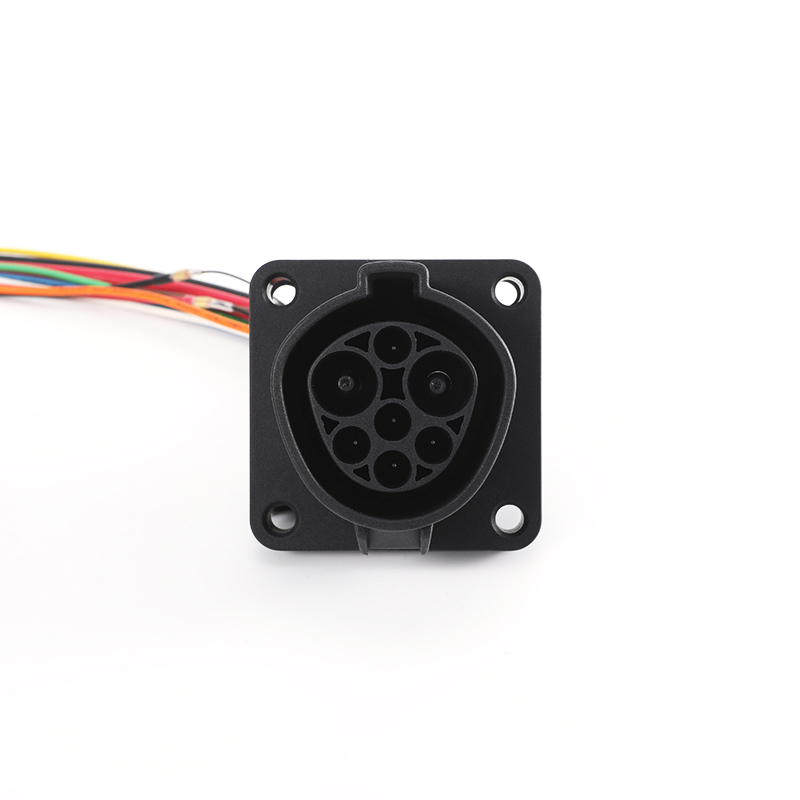

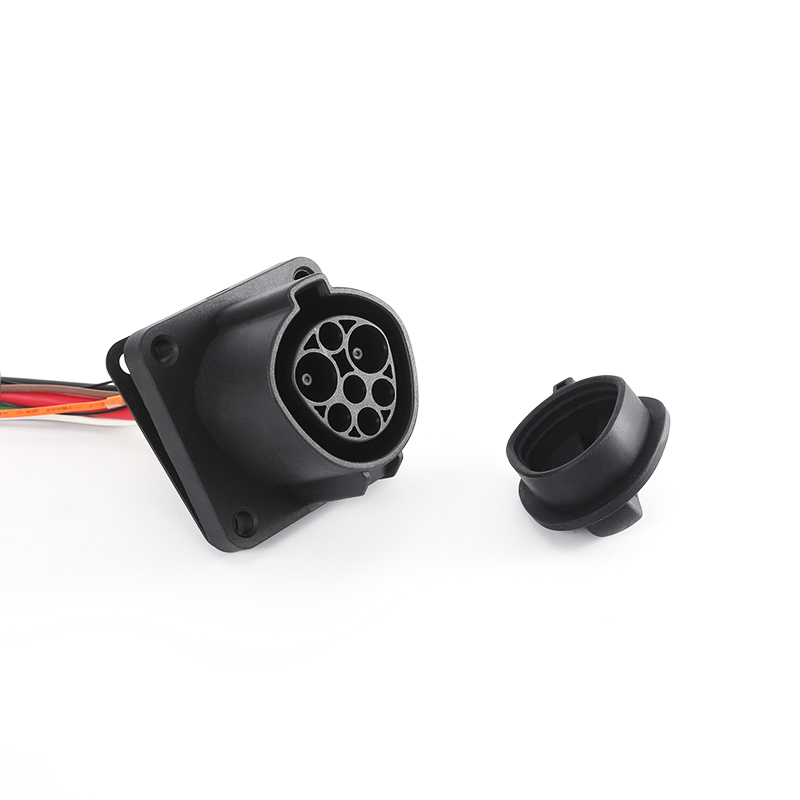

Electric Motorcycle Charger Connector

Applications: High power & lithium charging

Advantages
• Push and press for locking and unlocking, easy to use
• Small in form factor, easy to carry
• CKD design
• With micro switch
• IS 17017_2_6 / OEC 62196-6 standard interface
• RoHS and REACH compliant

Service Online：

GET QUOTE　　　>

Mating Cycle: ≥10,000 Cycles	Voltage Rating: 120V DC (Power) 30V DC (Signal)	Operating Temperature: -40°C to 105°C
Wire Processing: Crimp	Current Rating: 25A + 60A	IP Rating: IP55
Insulation Resistance: >100MΩ at DC 500V	Peak Current: Power 180A 30S	Salt Spray: 5% Nacl, 48H
Wire Gauge: Power 12AWG/Max Signal 20AWG/Max	Withstand Voltage: 2,000V AC (Power) 500V AC (Signal)	Flammability Rating: UL94V-0
