Product features:

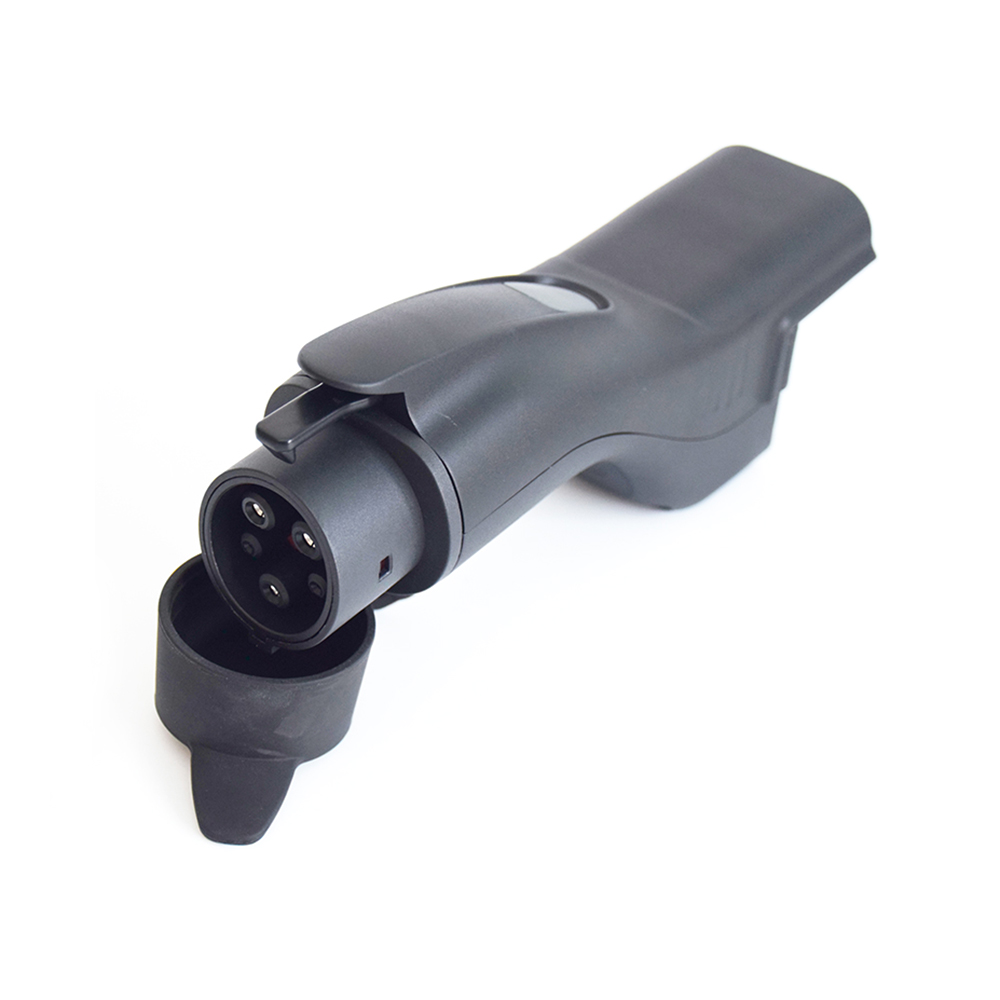

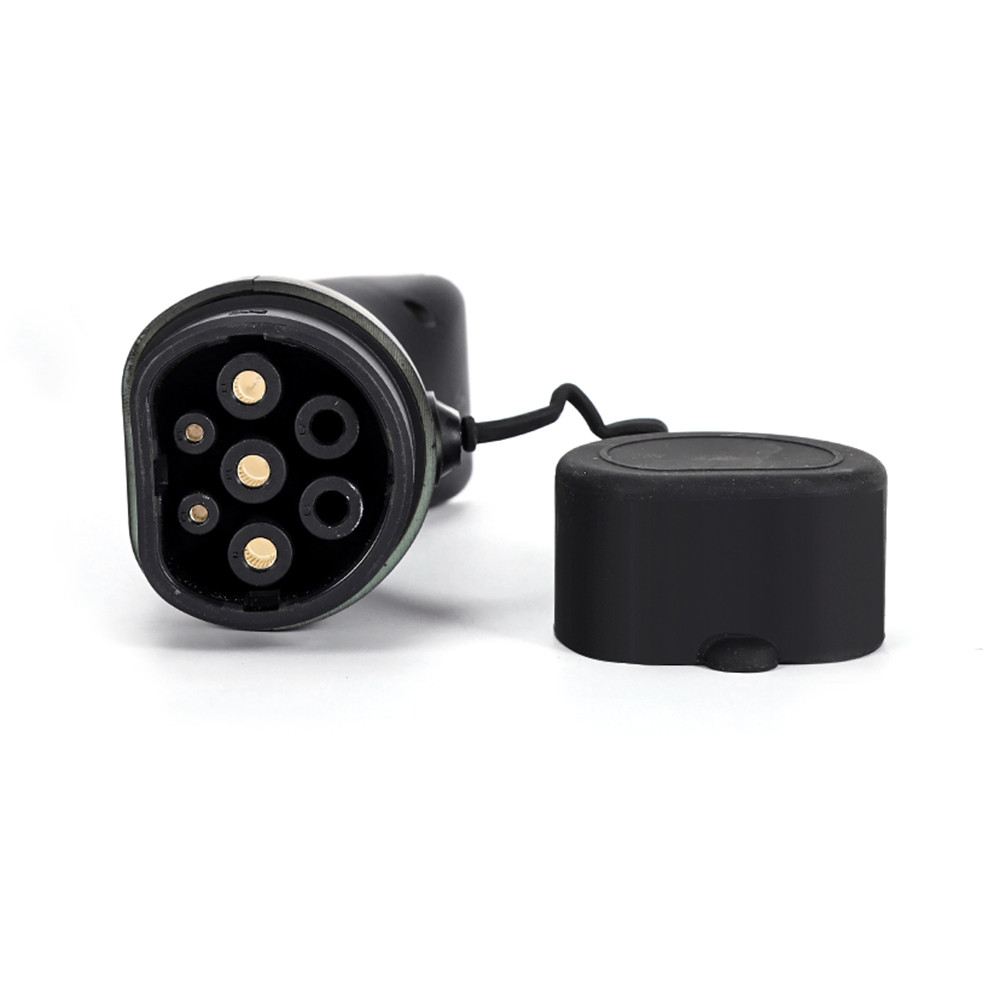

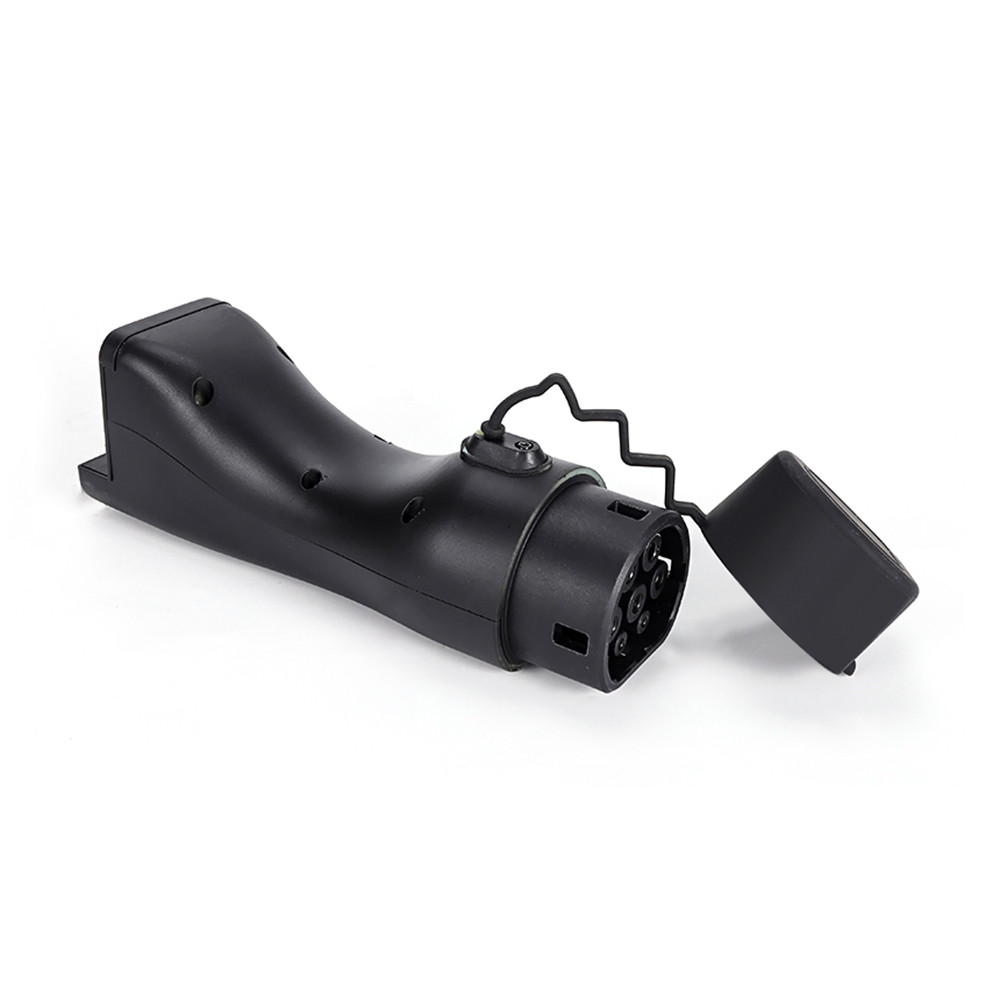

1. European standard plug end: AC charging interface according to IEC62196-2

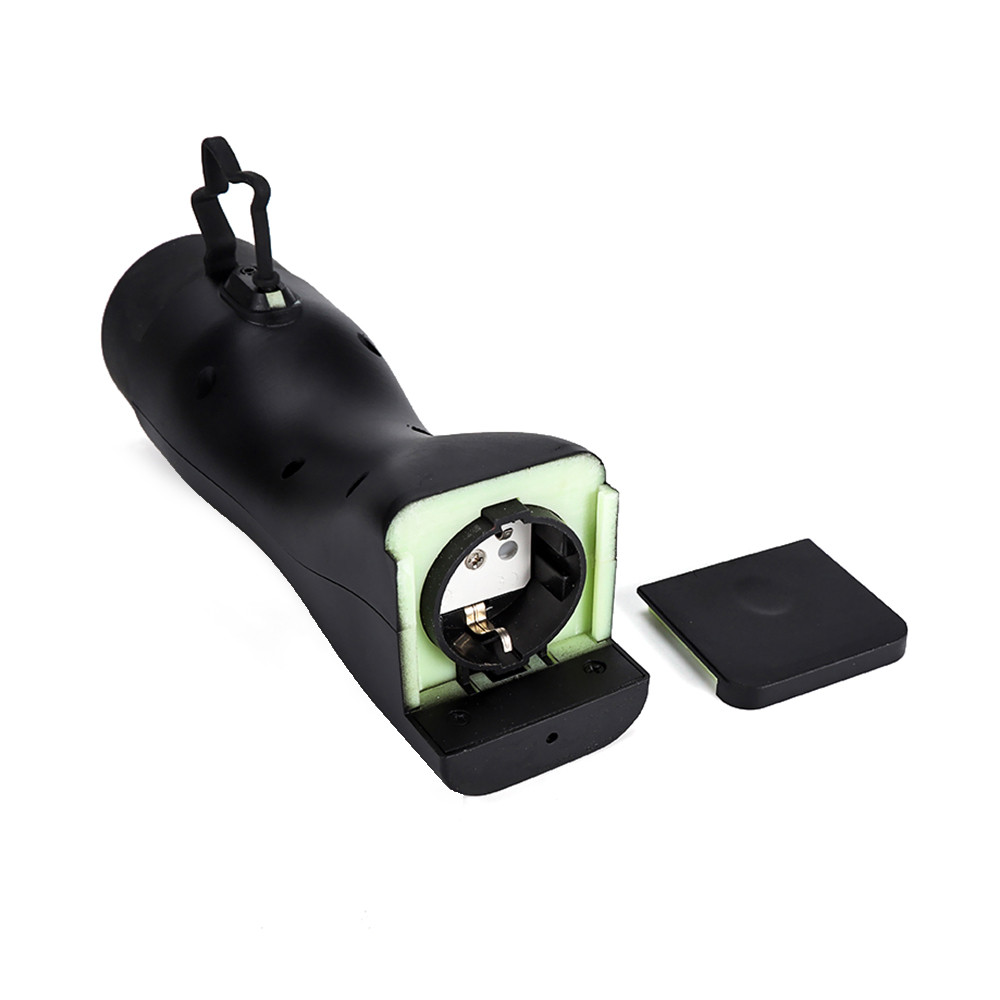

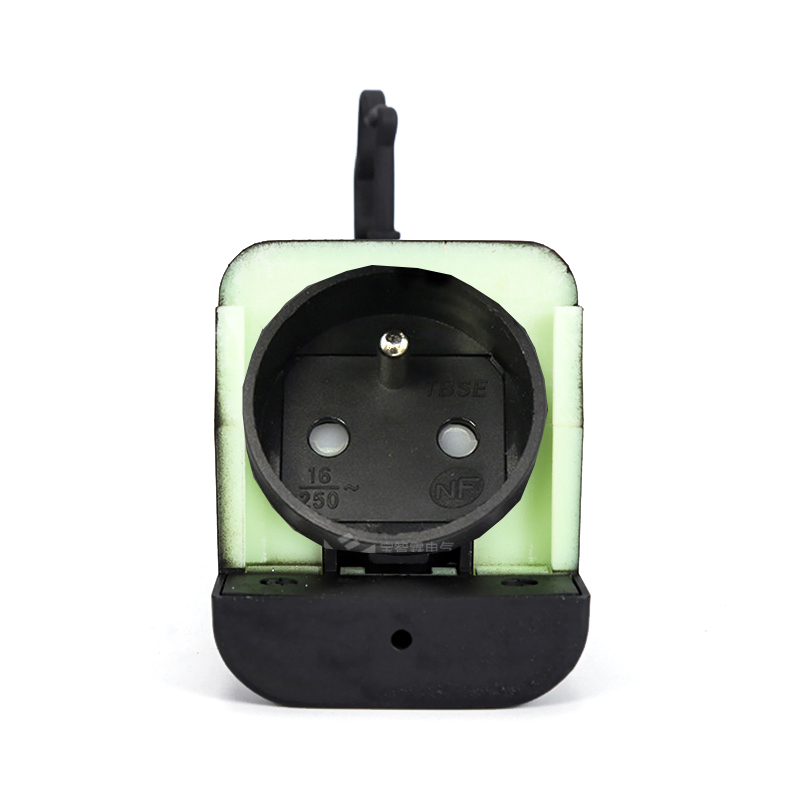

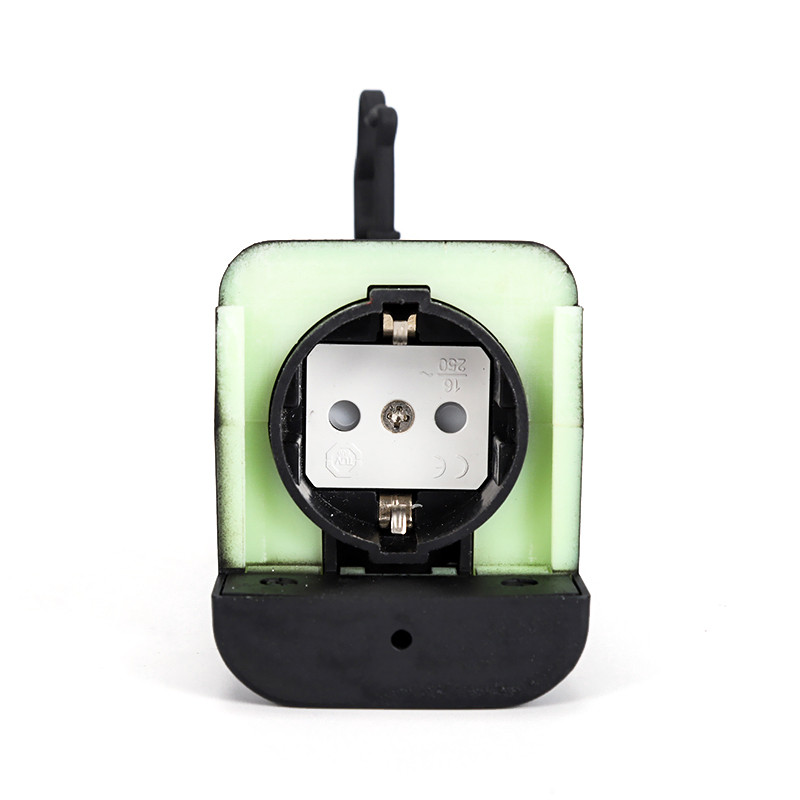

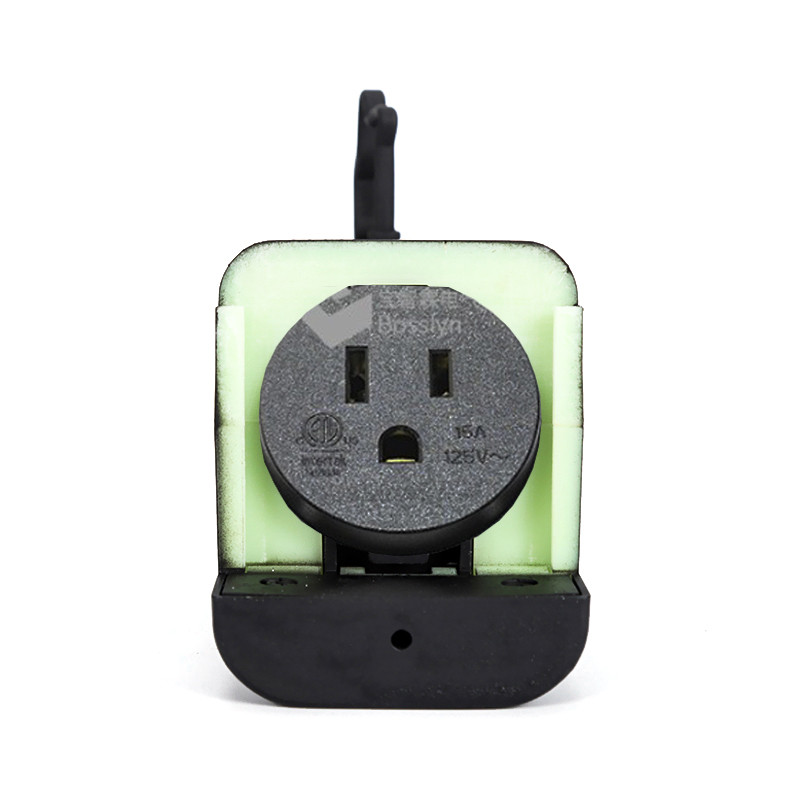

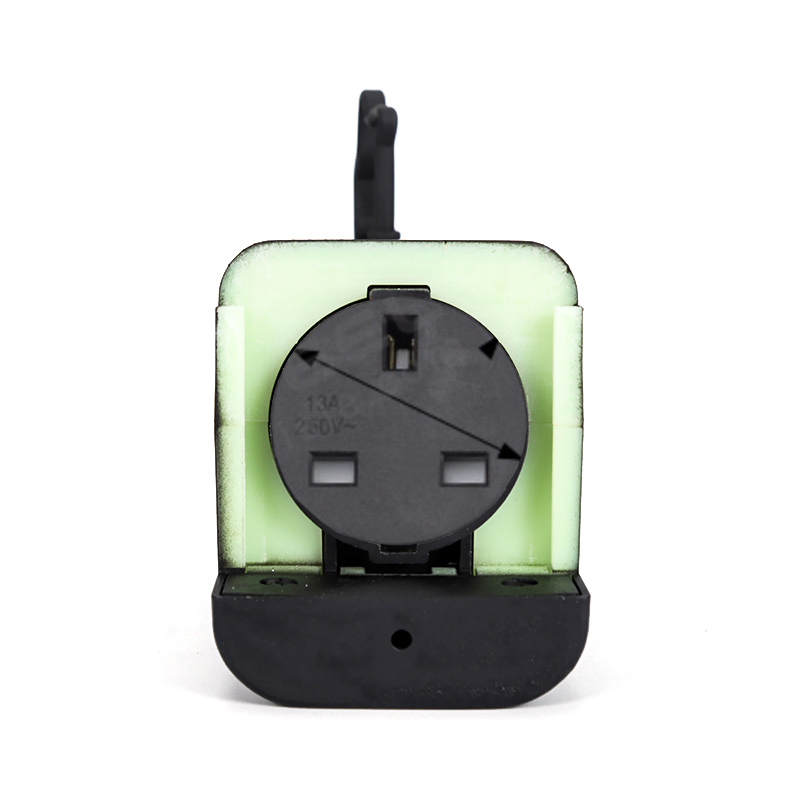

2. Discharge socket end: Multi-function socket, suitable for standard plugs of different countries

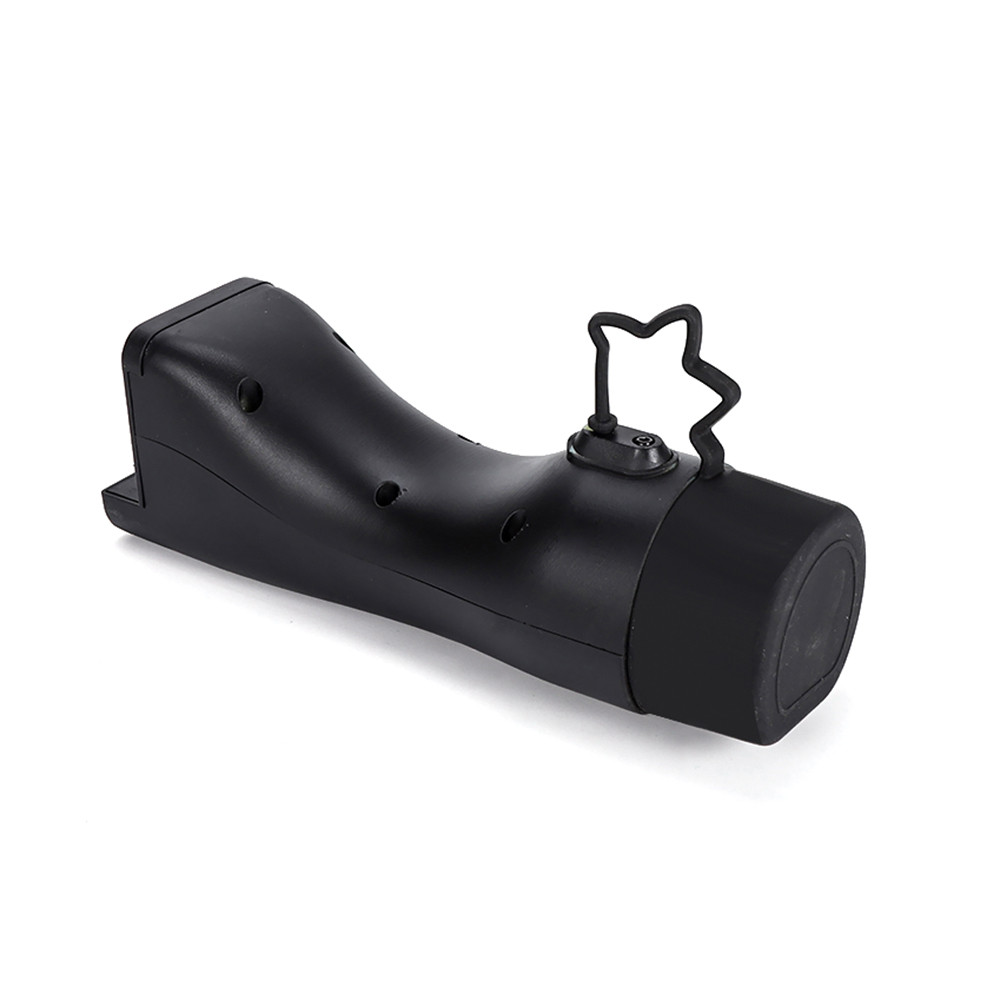

3. Beautiful appearance, handheld design conforms to ergonomic principles, easy to plug and unplug

4. Excellent protection performance, protection level reaches IP44 (working state)

Material and performance:

1. Shell material: Thermoplastic plastic, flame retardant grade UL94V-0

2. Discharge socket sleeve: Copper alloy, nickel-plated surface

3. European standard plug terminal: Copper alloy, silver-plated surface

4. Mechanical life: No-load plugging and unplugging >10000 times

5. Impact resistance: can withstand 1 meter drop and 2 tons of vehicle pressure

6. Working environment temperature: -30℃~+50℃

Electrical performance:

1. Rated working current: 16A

2. Working voltage: 250VAC

3. Insulation resistance: >10MΩ (DC500V)

4. Terminal temperature rise: <50K

5. Withstand voltage: 2000VAC/5S

6. Leakage current: ≤5mA

Function description:

1. Protection door, with micro switch, normally open, the switch is closed when inserted to start discharge.

2. Power-on indicator light, the green light is on when power is supplied.

3. Over-temperature protection (optional)

Self-recovery temperature protection switch, normally closed type, disconnected when the temperature reaches 105+5℃, and the switch returns to the normally closed state when the temperature drops to 75+5℃.

4. Short circuit protection (optional)

5. Overcurrent protection (optional)

Self-recovery overcurrent protection switch, when the current >15A, the main power circuit is disconnected within 1 minute.

6. Leakage protection (optional)

7. Undervoltage protection (optional)
